Creality Ender 5 Max
About the Creality Ender 5 Max

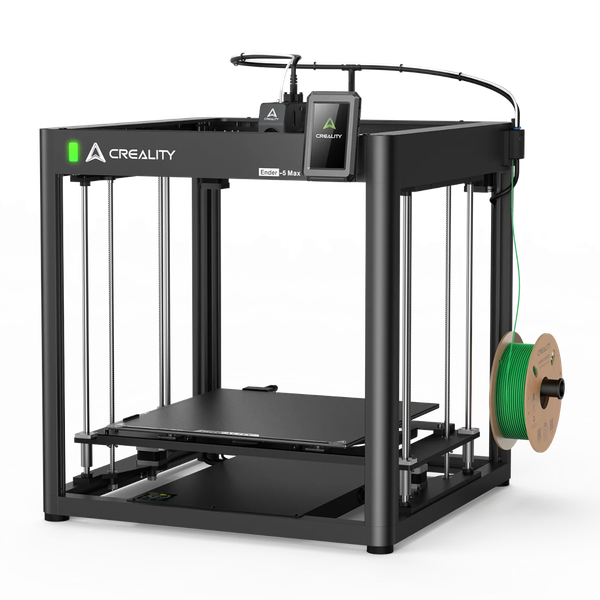

The Creality Ender 5 Max is a large format open frame CoreXY 3D printer. It has an unusually large print volume of 400 X 400 X 400 mm. It prints at 700 mm/s with an acceleration of 20,000 mm/s². The direct extruder uses dual tempered steel gears and you can heat the nozzle to 300°C. The 1000 W bed heater can heat the flexible magnetically-attached epoxy coated steel print bed up to 100°C in 200 seconds. The printer uses input shaping to reduce the effect of vibrations, as well as 64-point auto leveling and auto Z offset. Dual Z axis motors raise or lower the bed using two leadscrews each. It's optimized for high volume printing in print farms, with a large status LED visible from a distance that indicates printing, standby, or error. You can control the printer using its 4.3-inch full color touchscreen, Creaity Print on a laptop or PC, or the Creality Cloud App on your phone, and load files onto its 8 GB of internal storage or read them off a USB drive. It connects to your network using 2.4 GHz WiFi. You can add an optional enclosure for easier printing of ABS, ASA or other engineering filaments, and a 1080p camera to keep an eye on prints and record timelapse videos.
Benefits of the Creality Ender 5 Max
Modern mainboard features - Many 3D printer features relate to the version of the mainboard and firmware, including features like resuming prints after a power failure and support for silent stepper motor drivers for quieter printing. Newer boards also include safety features like thermal runaway protection which shuts the printer down if it detects issues with overheating.
Auto bed leveling - auto bed leveling will ensure your prints have perfect first layers every time and greatly reduce issues with bed adhesion. When using an auto-leveling system, the probe allows better tolerances for slightly warped print beds by measuring and compensating for any inconsistencies. Without this feature, you'll need to adjust the bed level manually using nuts on each corner of the print bed.
Has touch screen - having a touch screen isn't a deal-maker or breaker, but it is a convenient feature that makes it easier to navigate the interface when you are printing files and configuring 3D printing settings.
Direct drive extruder - Direct drive extruders are mounted right above the hot end, and push the filament directly into it, as opposed to a side mounted bowden extruder setup. We prefer direct drive extruders to bowden since they are less prone to jamming and typically require less maintenance. they also are much easier to use with flexible materials
Huge build volume - This printer has one of the largest build volumes in the consumer market, and will provide the most options in terms of printing large parts. While this can be very useful for certain applications, the large footprint of these machines makes them hard to fit on a desk, so we only recommend going with a 3D printer of this size if you really need it
Wireless printing - In addition to the standard USB and SD card connections, you can connect wirelessly to this printer to print from your computer or mobile device.
Linear rail motion system - Linear rails provide added stability to the moving parts of the printer, allowing higher printing speeds without sacrificing quality. Keep in mind that the most important factor to consider when optimizing for print speed is the flow rate of filament, which depends on the hot end and nozzle size moreso than the motion system.
All-metal hot end - An all-metal hot end allows for printing at high temperatures up to 300C, while standard hot ends are capped at 260C before the PTFE material begins to degrade. All-metal hot ends are also less susceptible to jamming, and do not degrade as fast.
CoreXY Kinematic System - A CoreXY 3D printer kinematic system uses two stationary motors to move the print head in the X and Y directions, resulting in faster and more precise movements compared to traditional printers. By separating the movement of the print head from the movement of the build plate, the CoreXY system is able to avoid the added weight and momentum of a moving build plate. This results in less vibration and better control of the print head, allowing for faster and more precise movements. Additionally, the CoreXY system can print at higher speeds compared to H-bot systems because it only needs to move one motor for each axis of movement, reducing the overall weight and inertia of the system.
Dual gear extruder - A dual gear extruder grips filament from both sides and can exert much more force on the filament before slipping. It helps with all filaments but especially with flexible, slippery TPU.
Where to buy the Creality Ender 5 Max
Brand Summary: Creality
Creality is a well-known brand that offers a wide range of consumer 3D printers across all price points, from budget to higher end models. The Ender 3 is credited with originating the budget 3D printer market. While other brands now produce lower cost clones of the Ender 3, Creality remains the most established Chinese manufacturer of 3D printers. Creality uses off-the-shelf components and standardized aluminum extrusions on many of their printers to reduce costs, making their printers easy to repair and upgrade. Their official online community forums and manufacturer support are limited, but support can be found on communities on Reddit and Discord.
Printer Comparisons
You can compare the Creality Ender 5 Max to other 3D printers using our Compare tool.
