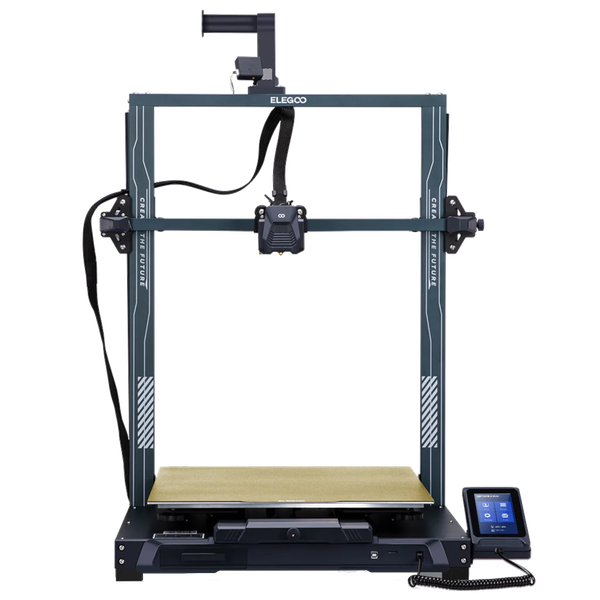

ELEGOO Neptune 3 Max
About the ELEGOO Neptune 3 Max
The Elegoo Neptune 3 Plus is an upgraded, giant version of the discontinued Elegoo Neptune 3. It has a gigantic print volume of 420 X 420 X 500mm. It is equipped with a flexible, removable, magnetic steel PEI bed, which can be heated up to 100°C. Dual Z axis motors and lead screws connected by a timing belt assure accurate height positioning, prevent sag or tilt and ensure the lead screws are synced. A dual steel gear direct extruder with a Teflon-lined hot end heats up to 260°C and handles PLA, PETG, ABS, ASA and TPU. Part cooling is provided by dual fans. It has a 63-point auto levelling system using an inductive sensor. There are 6 bed levelling knobs - 4 at the corners, one under the front center, and one under the back center. An unusual feature is that the 4.3 inch touchscreen is detachable and connects to the printer by a coiled cord. A filament detector, integrated LED lighting and belt tensioners add to the upgrades.
Benefits of the ELEGOO Neptune 3 Max
Modern mainboard features - Many 3D printer features relate to the version of the mainboard and firmware, including features like resuming prints after a power failure and support for silent stepper motor drivers for quieter printing. Newer boards also include safety features like thermal runaway protection which shuts the printer down if it detects issues with overheating.
Auto bed leveling - auto bed leveling will ensure your prints have perfect first layers every time and greatly reduce issues with bed adhesion. When using an auto-leveling system, the probe allows better tolerances for slightly warped print beds by measuring and compensating for any inconsistencies. Without this feature, you'll need to adjust the bed level manually using nuts on each corner of the print bed.
Has touch screen - having a touch screen isn't a deal-maker or breaker, but it is a convenient feature that makes it easier to navigate the interface when you are printing files and configuring 3D printing settings.
Easy to assemble - This 3D printer is shipped with most of the parts pre-assembled, and you will only need to attach a few components and connect a couple cables in order to get the machine ready to print.
Direct drive extruder - Direct drive extruders are mounted right above the hot end, and push the filament directly into it, as opposed to a side mounted bowden extruder setup. We prefer direct drive extruders to bowden since they are less prone to jamming and typically require less maintenance. they also are much easier to use with flexible materials
PEI build surface has good balance of adhesion and part removal - PEI beds are one of the more premium build surface options, and for good reason. They offer great first layer adhesion with no spraysor other treatments, and can be flexed to quickly remove parts. You'll need to clean the bed with a solvent like acetone or IPA every so often to maintain the bed's adhesion.
Huge build volume - This printer has one of the largest build volumes in the consumer market, and will provide the most options in terms of printing large parts. While this can be very useful for certain applications, the large footprint of these machines makes them hard to fit on a desk, so we only recommend going with a 3D printer of this size if you really need it
Dual gear extruder - A dual gear extruder grips filament from both sides and can exert much more force on the filament before slipping. It helps with all filaments but especially with flexible, slippery TPU.
Where to buy the ELEGOO Neptune 3 Max
Brand Summary: Elegoo
Elegoo, founded in 2015, aims to democratize 3D printing by offering high-quality printers at accessible prices. Their diverse range caters to a wide range of users. Beginners benefit from user-friendly features like auto-bed leveling and clear instructions, while a thriving online community offers a wealth of troubleshooting tips and shared experiences. Hobbyists and professionals appreciate the excellent value proposition – Elegoo printers deliver high-quality parts, good build features, and reliable performance without breaking the bank. Elegoo's support system goes beyond the online community. They're known for being responsive via email and social media, and users frequently praise their willingness to send replacement parts free of charge for legitimate issues. This commitment to customer satisfaction strengthens their position as a user-friendly brand. However, it's important to note that repairs primarily rely on parts sourced directly from Elegoo. While this ensures quality control, it might be a drawback for those who prefer readily available options from various vendors. Overall, Elegoo strikes a balance between affordability, user-friendliness, and reliable printing performance. Their diverse product range, strong community support, and responsive manufacturer service make them a compelling choice for anyone considering venturing into the exciting world of 3D printing.
