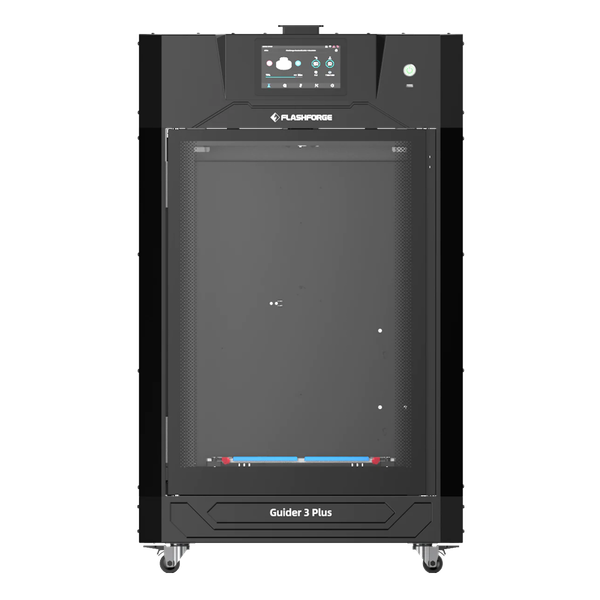

Flashforge Guider 3 Plus
About the Flashforge Guider 3 Plus
The Guider 3 Plus has an extra-large 350 x 350 x 600 mm build volume to accommodate printing sizable models. Dual 16mm Z-axis ball screws enable unprecedented stability for continuous 24/7 operation, supporting up to 30kg on the build plate. Print speeds reach 250 mm/s, reducing job time by nearly 60% over standard speeds. The sealed filament chamber uses desiccant to maintain humidity under 20%. The smart touchscreen simplifies monitoring and maintenance. Features like power loss recovery, filament runout detection, and HEPA 13 air filtration are included. With a 320°C maximum extruder temperature, the Guider 3 Plus works with engineering-grade materials. FlashCloud software provides wireless printing and multi-printer management. The flexible removable print bed makes model detachment easy. In summary, the Guider 3 Plus combines industrial-level capabilities with a large build volume and intelligent functionality for engineering-grade 3D printing. It fulfills demands for rapid prototyping and validating multi-size parts.
Benefits of the Flashforge Guider 3 Plus
Auto bed leveling - auto bed leveling will ensure your prints have perfect first layers every time and greatly reduce issues with bed adhesion. When using an auto-leveling system, the probe allows better tolerances for slightly warped print beds by measuring and compensating for any inconsistencies. Without this feature, you'll need to adjust the bed level manually using nuts on each corner of the print bed.
Fully assembled - This 3D printer is shipped completely assembled, and is ready to plug in and start using as soon as you unbox it. You will still need to follow the included calibration procedures, but this will not take a significant amount of time.
Direct drive extruder - Direct drive extruders are mounted right above the hot end, and push the filament directly into it, as opposed to a side mounted bowden extruder setup. We prefer direct drive extruders to bowden since they are less prone to jamming and typically require less maintenance. they also are much easier to use with flexible materials
Huge build volume - This printer has one of the largest build volumes in the consumer market, and will provide the most options in terms of printing large parts. While this can be very useful for certain applications, the large footprint of these machines makes them hard to fit on a desk, so we only recommend going with a 3D printer of this size if you really need it
Wireless printing - In addition to the standard USB and SD card connections, you can connect wirelessly to this printer to print from your computer or mobile device.
Enclosure - An enclosure seals air around the print area. This holds warm, still air around the print area and is essential for printing temperature-sensitive materials like ABS. Enclosures also prevent particulates and gasses from being emitted into the surrounding area, increasing safety. They also greatly reduce printer noise.
CoreXY Kinematic System - A CoreXY 3D printer kinematic system uses two stationary motors to move the print head in the X and Y directions, resulting in faster and more precise movements compared to traditional printers. By separating the movement of the print head from the movement of the build plate, the CoreXY system is able to avoid the added weight and momentum of a moving build plate. This results in less vibration and better control of the print head, allowing for faster and more precise movements. Additionally, the CoreXY system can print at higher speeds compared to H-bot systems because it only needs to move one motor for each axis of movement, reducing the overall weight and inertia of the system.
Where to buy the Flashforge Guider 3 Plus
Click here to view the Flashforge Guider 3 Plus on Matterhackers.
Brand Summary: FlashForge
Flashforge has established itself as a key player in the 3D printing industry, particularly known for its mid-priced and high-priced 3D printers that cater to a diverse range of users, from beginners to professionals. Founded in 2011, Flashforge, the first Chinese manufacturer of 3D printers, has continually expanded its offerings to include not only consumer-level printers but also models suited for educational, professional, and industrial purposes. Their products are characterized by fully enclosed designs that deviate from the typical open-frame models seen in some competitors. The brand has made a name for itself with its focus on user-friendly features such as automatic filament feeding, dual extrusion capabilities, WiFi connectivity, large touchscreens, and cloud printing. These advanced features, combined with their fully enclosed structures, position Flashforge printers as more than just tools, but as integral, user-friendly appliances in the home or professional setting. Despite their broad appeal, Flashforge faces criticism for not fully embracing the open-source movement, resulting in proprietary parts that can limit compatibility with generic components. This aspect can be a drawback for users who seek to upgrade their printers with third-party parts or who require standard-sized filament spools, as Flashforge's automatic filament feeder system is designed for narrower, brand-specific spools. However, the company offsets these limitations by offering lifetime technical support and maintaining a robust online presence, including a substantial following on social media platforms like Facebook. This support, coupled with their focus on producing printers that are quiet, enclosed, and automated, cements Flashforge’s status as a brand dedicated to creating accessible, high-quality 3D printing experiences, especially for those new to the field.
Printer Comparisons
You can compare the FlashForge Flashforge Guider 3 Plus to other 3D printers using our Compare tool.
