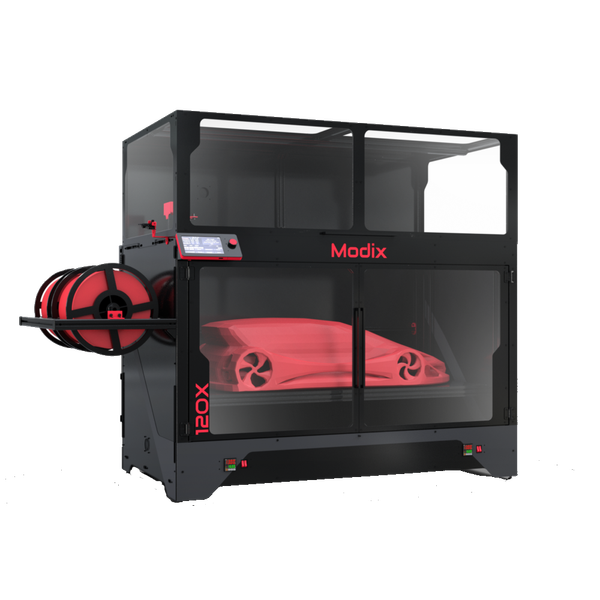

Modix BIG-120X

About the Modix BIG-120X

Benefits of the Modix BIG-120X

Has touch screen - having a touch screen isn't a deal-maker or breaker, but it is a convenient feature that makes it easier to navigate the interface when you are printing files and configuring 3D printing settings.

Direct drive extruder - Direct drive extruders are mounted right above the hot end, and push the filament directly into it, as opposed to a side mounted bowden extruder setup. We prefer direct drive extruders to bowden since they are less prone to jamming and typically require less maintenance. they also are much easier to use with flexible materials

PEI build surface has good balance of adhesion and part removal - PEI beds are one of the more premium build surface options, and for good reason. They offer great first layer adhesion with no spraysor other treatments, and can be flexed to quickly remove parts. You'll need to clean the bed with a solvent like acetone or IPA every so often to maintain the bed's adhesion.

Huge build volume - This printer has one of the largest build volumes in the consumer market, and will provide the most options in terms of printing large parts. While this can be very useful for certain applications, the large footprint of these machines makes them hard to fit on a desk, so we only recommend going with a 3D printer of this size if you really need it

Wireless printing - In addition to the standard USB and SD card connections, you can connect wirelessly to this printer to print from your computer or mobile device.

CoreXY Kinematic System - A CoreXY 3D printer kinematic system uses two stationary motors to move the print head in the X and Y directions, resulting in faster and more precise movements compared to traditional printers. By separating the movement of the print head from the movement of the build plate, the CoreXY system is able to avoid the added weight and momentum of a moving build plate. This results in less vibration and better control of the print head, allowing for faster and more precise movements. Additionally, the CoreXY system can print at higher speeds compared to H-bot systems because it only needs to move one motor for each axis of movement, reducing the overall weight and inertia of the system.

Enclosure - An enclosure seals air around the print area. This holds warm, still air around the print area and is essential for printing temperature-sensitive materials like ABS. Enclosures also prevent particulates and gasses from being emitted into the surrounding area, increasing safety. They also greatly reduce printer noise.

Dual gear extruder - A dual gear extruder grips filament from both sides and can exert much more force on the filament before slipping. It helps with all filaments but especially with flexible, slippery TPU.

Disadvantages to consider

Difficult to assemble - This 3D printer is shipped mostly unassembled, and will require more time to put together. This can be a good learning experience to better understand how the printer works, but can be a challenge especially if you are new to 3D printing.

Bare-bones appearance - This printer is not built to be attractive, which is apparent by the standard aluminum extrusions used throughout the design, and the exposed power supply unit. While this is a purely cosmetic issue, it makes the printer less attractive than some of it's more expensive cousins.

Moderately difficult assembly - This 3D printer is shipped partially unassembled, and will require more time to put together. This can be a good learning experience to better understand how the printer works, but can be a challenge especially if you are new to 3D printing.

Where to buy the Modix BIG-120X

Click here to view the Modix BIG-120X on Matterhackers.

Brand Summary: Modix

Modix, founded in 2014, has carved a niche in large-scale 3D printing. Their printers offer good value for features and readily available repair parts, making them ideal for users with specific needs for bigger build volumes. However, keep in mind that this comes with a high price tag and a complex setup process. Modix has seen some criticism for and quality control issues. While Modix offers a customer zone with helpful resources and limited email support during business hours, their direct support is known to be modest. The online community for Modix users is also smaller compared to other brands. This means Modix users need to be resourceful and comfortable troubleshooting challenges on their own. The 3D model viewer in the assembly manuals and the availability of video support sessions are helpful aspects, but users might need to do more digging in broader online 3D printing communities to find Modix-specific solutions. In summary, Modix caters to experienced users who prioritize affordability, readily available parts, and large build volumes over extensive hand-holding support. Be prepared for a potentially challenging setup process and the need for independent troubleshooting skills to get the most out of your Modix machine.

Learn more about Modix.
