Phrozen Arco
About the Phrozen Arco

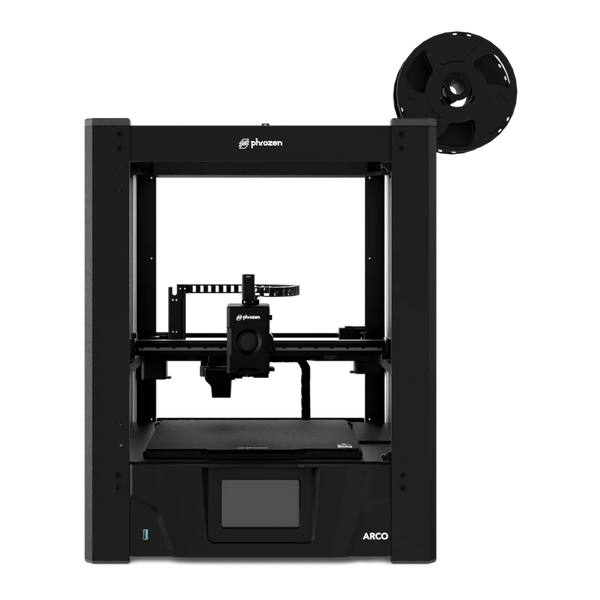

The Phrozen Arco is a large flying gantry high speed CoreXY 3D printer. Its print volume is 300 X 300 X 300mm and it has a maximum speed of 1000mm/s with 40,000 mm/s^2 acceleration. It uses a flying gantry, where the print bed remains fixed at the bottom of the printer while the gantry moves above using CoreXY kinematics. This increases stability, particularly for taller prints. An enclosure is optional and can be easily attached to the open frame. The all-metal direct extruder with dual metal gears supplies filament to a nozzle with 50mm^3/s flow and a maximum temperature of 300°C, printing on a bed with a maximum temperature of 120°C. The bed is magnetically-mounted, flexible steel with a PEI coating. It uses a 4-filament multimaterial feeder Phrozen calls the Chroma Kit. It's powered by open-source Klipper and uses Phrozen's PIXUP 3D as a slicer. Bed leveling and auto Z offset use the printer's nozzle strain detector. There's Klipper's input shaping and vibration compensation to ensure print quality. The printer is lit with an LED light bar and is equipped with a webcam. It connects to the network by Wi-Fi and has a USB port as well. You can control the printer with a 5 inch full color touchscreen built into the center of the base.
Benefits of the Phrozen Arco
Modern mainboard features - Many 3D printer features relate to the version of the mainboard and firmware, including features like resuming prints after a power failure and support for silent stepper motor drivers for quieter printing. Newer boards also include safety features like thermal runaway protection which shuts the printer down if it detects issues with overheating.
Auto bed leveling - auto bed leveling will ensure your prints have perfect first layers every time and greatly reduce issues with bed adhesion. When using an auto-leveling system, the probe allows better tolerances for slightly warped print beds by measuring and compensating for any inconsistencies. Without this feature, you'll need to adjust the bed level manually using nuts on each corner of the print bed.
Has touch screen - having a touch screen isn't a deal-maker or breaker, but it is a convenient feature that makes it easier to navigate the interface when you are printing files and configuring 3D printing settings.
Easy to assemble - This 3D printer is shipped with most of the parts pre-assembled, and you will only need to attach a few components and connect a couple cables in order to get the machine ready to print.
Direct drive extruder - Direct drive extruders are mounted right above the hot end, and push the filament directly into it, as opposed to a side mounted bowden extruder setup. We prefer direct drive extruders to bowden since they are less prone to jamming and typically require less maintenance. they also are much easier to use with flexible materials
PEI build surface has good balance of adhesion and part removal - PEI beds are one of the more premium build surface options, and for good reason. They offer great first layer adhesion with no spraysor other treatments, and can be flexed to quickly remove parts. You'll need to clean the bed with a solvent like acetone or IPA every so often to maintain the bed's adhesion.
Generous Build volume - A larger than average build volume means that you will be able to print larger parts without the need to split them into pieces and attach them together, which is especially useful with functional parts. If you have the room for the larger footprint, we definitely recommend going with a larger 3D printer, since you can always print small parts on a larger printer.
Wireless printing - In addition to the standard USB and SD card connections, you can connect wirelessly to this printer to print from your computer or mobile device.
Linear rail motion system - Linear rails provide added stability to the moving parts of the printer, allowing higher printing speeds without sacrificing quality. Keep in mind that the most important factor to consider when optimizing for print speed is the flow rate of filament, which depends on the hot end and nozzle size moreso than the motion system.
All-metal hot end - An all-metal hot end allows for printing at high temperatures up to 300C, while standard hot ends are capped at 260C before the PTFE material begins to degrade. All-metal hot ends are also less susceptible to jamming, and do not degrade as fast.
CoreXY Kinematic System - A CoreXY 3D printer kinematic system uses two stationary motors to move the print head in the X and Y directions, resulting in faster and more precise movements compared to traditional printers. By separating the movement of the print head from the movement of the build plate, the CoreXY system is able to avoid the added weight and momentum of a moving build plate. This results in less vibration and better control of the print head, allowing for faster and more precise movements. Additionally, the CoreXY system can print at higher speeds compared to H-bot systems because it only needs to move one motor for each axis of movement, reducing the overall weight and inertia of the system.
Where to buy the Phrozen Arco
Brand Summary: Phrozen
Founded in 2016 by enthusiasts, Phrozen (Taiwan) offers professional-grade 3D printers for a wide range of users. Their fully assembled machines, clear instructions, and auto bed leveling make them beginner-friendly. High-quality parts, good value, and widely available repair parts extend their appeal to professionals in industrial and medical fields. Phrozen prioritizes user experience. Their website offers a wealth of downloadable resources, from user manuals and resin guides to beginner tutorials and test print models. Firmware updates keep your machine current. While details on direct support are limited, a large and active online community provides additional help and a space to connect with other Phrozen users. Overall, Phrozen's combination of professional features, user-friendly approach, extensive resources, and strong community support makes them a versatile choice for anyone seeking a well-supported and powerful 3D printing experience.
Printer Comparisons
You can compare the Phrozen Arco to other 3D printers using our Compare tool.
