Prusa XL

Year Released:
2024
Build Volume:
360 x 360 x 360 mm (~14.25 x 14.25 x 14.25 in)
Price Range:
$1975 - 2000

Pros

  • Large online community
  • Modern mainboard features
  • Premium components
  • Direct drive extruder
  • Wireless printing
  • Generous Build volume

Cons

  • Difficult to assemble
  • High price tag

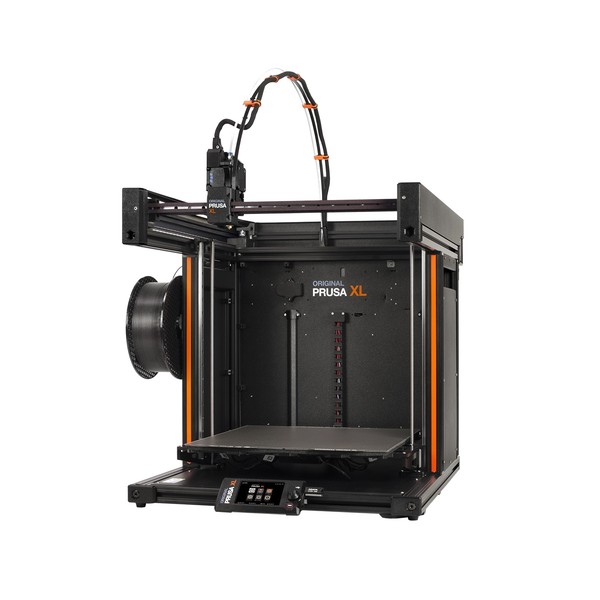

About the Prusa XL

The Original Prusa XL, a CoreXY 3D printer, features a large build volume of 360×360×360 mm. It is designed with a unique modular segmented heatbed consisting of 16 independently controlled tiles, aiming to minimize heat deformation during printing. The XL includes the Nextruder (also included on the MK4), an advanced extrusion system that includes a Load Cell sensor for precise first-layer calibration and a planetary gearbox for enhanced precision. This system also supports a quick-swap nozzle feature for multi-material printing, and can support up to 5 nozzles, though you will need to pay extra for this feature. Equipped with modern printing technologies like Input Shaper and Pressure Advance, the Prusa XL promises faster and more efficient printing. It supports a wide range of printing materials, offers connectivity options like built-in Ethernet and Wi-Fi, and includes features such as power-loss recovery. This printer is tailored to both hobbyists and professionals seeking high-quality, large-scale prints. The Prusa XL, while offering advanced features and large build volume, also comes with potential downsides. Its high price tag may be a significant consideration for some users. Additionally, the assembly process of the Prusa XL is quite involved despite being advertised as "semi-assembled", requiring a higher level of technical skill and time investment. While you can purchase the printer fully assembled, this adds to the price.

Do you own this 3D printer? Help us improve this page. Click here to learn more

Benefits of the Prusa XL

Large online community - A large online community is important when it comes to any questions that come up as you learn how to use your 3D printer. A larger community typically means that you'll be able to find answers already posted to the most common questions, and you'll be able to find slicing profiles and printable upgrades online.

Modern mainboard features - Many 3D printer features relate to the version of the mainboard and firmware, including features like resuming prints after a power failure and support for silent stepper motor drivers for quieter printing. Newer boards also include safety features like thermal runaway protection which shuts the printer down if it detects issues with overheating.

Premium components - This printer is known for using the highest quality components, and prioritizes this over providing a lower price point on their printers.

Direct drive extruder - Direct drive extruders are mounted right above the hot end, and push the filament directly into it, as opposed to a side mounted bowden extruder setup. We prefer direct drive extruders to bowden since they are less prone to jamming and typically require less maintenance. they also are much easier to use with flexible materials

Wireless printing - In addition to the standard USB and SD card connections, you can connect wirelessly to this printer to print from your computer or mobile device.

Generous Build volume - A larger than average build volume means that you will be able to print larger parts without the need to split them into pieces and attach them together, which is especially useful with functional parts. If you have the room for the larger footprint, we definitely recommend going with a larger 3D printer, since you can always print small parts on a larger printer.

Disadvantages to consider

Difficult to assemble - This 3D printer is shipped mostly unassembled, and will require more time to put together. This can be a good learning experience to better understand how the printer works, but can be a challenge especially if you are new to 3D printing.

High price tag - While this printer includes a lot of premium features, they come with a price. This printer is one of the more expensive consumer printers, and may not be worth the cost if you are willing to sacrifice some of the high end features.

Where to buy the Prusa XL

Click here to Check Price On Prusa 3 D Com

Brand Summary: Prusa

Prusa Research is a well-known manufacturer of high-end 3D printers that are known for their top-performing and innovative designs. The brand is mostly recognized for its impeccable documentation, high quality parts, and excellent customer support. Prusa printers are beginner-friendly once assembled, but the assembly process can be time-consuming, even though the firmware has extensive calibration and troubleshooting routines built-in. The Prusa community is large and active, with many technical experts among the veteran 3D printing hobbyists. Prusa's focus is on a few models at a time, and they are known for their well-made printers. However, competitors are rapidly catching up to Prusa, offering similar features at a lower price.

Learn more about Prusa.

Details & Specifications

General

Manufacturer
Prusa
Year Released
2024
Technology
FDM
Scale Model:
Build Volume
360 x 360 x 360 mm
Bed Material
Magnetic PEI Steel
Nominal Maximum Speed
-

Extruder & Hot-end

Extruder Type
Direct Drive
Extruder Construction
All-Metal Dual Gear
Hot-end Construction
All-Metal
Cooling Fan
Front mount

Physical Characteristics

Physical size
800 x 800 x 900 mm
Kinematics
Cartesian
Chassis
Unibody

Usability

Auto Leveling
Strain
Assembly Time
🔧🔧🔧🔧🔧 8 Hours
Built In WiFi Support
No
Other Features
Linear rails for all axes

Electronics

Base Voltage
24 V
Quiet Motor Drivers
-
