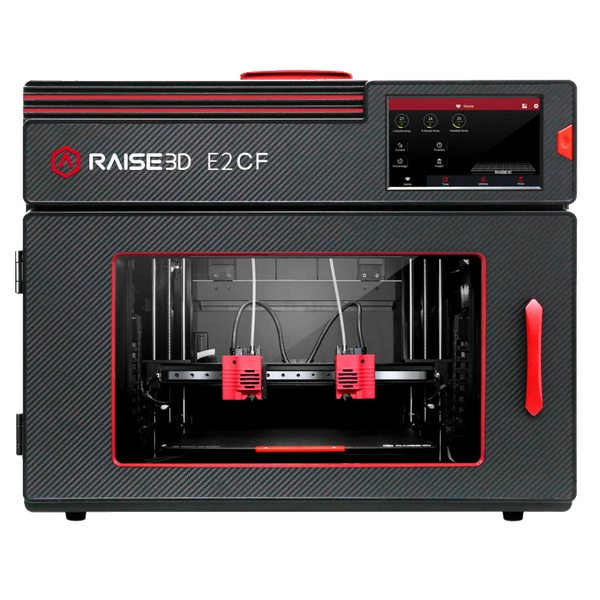

Raise3D E2CF
About the Raise3D E2CF
The Raise3D E2CF is an industrial IDEX 3D printer optimized for printing with carbon fiber reinforced materials. It features new durable silicon carbide nozzles that resist abrasion from carbon fiber, enhancing nozzle life. The independent dual extruders move along the X-axis, enabling mirror and copy modes to print two parts simultaneously for increased productivity. Specifically designed for carbon fiber materials, the E2CF includes the PA12 CF filament which provides excellent strength, heat resistance, and a superior strength-to-weight ratio. The printer has an improved calibration process for dialing in precision when printing with filled materials. The integrated HEPA filtration system removes potentially toxic nanoparticles released during printing as well. With robust metal framing and direct drive extruders, the E2CF delivers reliable performance for printing functional prototypes and end-use parts across aerospace, automotive, and other technical industries. Additional features like the flexible build plate, touchscreen interface, automatic bed leveling, and remote monitoring via RaiseCloud further enhance usability and print quality.
Benefits of the Raise3D E2CF
Modern mainboard features - Many 3D printer features relate to the version of the mainboard and firmware, including features like resuming prints after a power failure and support for silent stepper motor drivers for quieter printing. Newer boards also include safety features like thermal runaway protection which shuts the printer down if it detects issues with overheating.
Auto bed leveling - auto bed leveling will ensure your prints have perfect first layers every time and greatly reduce issues with bed adhesion. When using an auto-leveling system, the probe allows better tolerances for slightly warped print beds by measuring and compensating for any inconsistencies. Without this feature, you'll need to adjust the bed level manually using nuts on each corner of the print bed.
Has touch screen - having a touch screen isn't a deal-maker or breaker, but it is a convenient feature that makes it easier to navigate the interface when you are printing files and configuring 3D printing settings.
Fully assembled - This 3D printer is shipped completely assembled, and is ready to plug in and start using as soon as you unbox it. You will still need to follow the included calibration procedures, but this will not take a significant amount of time.
Direct drive extruder - Direct drive extruders are mounted right above the hot end, and push the filament directly into it, as opposed to a side mounted bowden extruder setup. We prefer direct drive extruders to bowden since they are less prone to jamming and typically require less maintenance. they also are much easier to use with flexible materials
Generous Build volume - A larger than average build volume means that you will be able to print larger parts without the need to split them into pieces and attach them together, which is especially useful with functional parts. If you have the room for the larger footprint, we definitely recommend going with a larger 3D printer, since you can always print small parts on a larger printer.
Wireless printing - In addition to the standard USB and SD card connections, you can connect wirelessly to this printer to print from your computer or mobile device.
Enclosure - An enclosure seals air around the print area. This holds warm, still air around the print area and is essential for printing temperature-sensitive materials like ABS. Enclosures also prevent particulates and gasses from being emitted into the surrounding area, increasing safety. They also greatly reduce printer noise.
Dual gear extruder - A dual gear extruder grips filament from both sides and can exert much more force on the filament before slipping. It helps with all filaments but especially with flexible, slippery TPU.
Where to buy the Raise3D E2CF
Brand Summary: Raise3D
Founded in 2015, Raise3D (China) has carved a niche in professional-grade 3D printers that are surprisingly user-friendly. Their well-made machines boast top-tier parts, readily available replacements, and good manufacturer support. This includes a user-friendly website with resources, a ticketing system for support requests, and a reportedly responsive team. A large online community provides additional avenues for finding answers and connecting with other Raise3D users. their clear instructions and features like auto bed leveling streamline the process for beginners. Their intuitive slicer software further contributes to a smooth user experience. While the price tag might be a consideration, Raise3D's combination of quality, user-friendly features, and strong support system makes them a versatile choice for anyone seeking a reliable and well-supported 3D printing experience, from beginners to professional users.
Printer Comparisons
You can compare the Raise3D E2CF to other 3D printers using our Compare tool.
