Sovol SV06 Plus

Year Released:
2023
Build Volume:
300 x 300 x 340 mm (~12 x 12 x 13.5 in)
Price Range:
$375 - 400

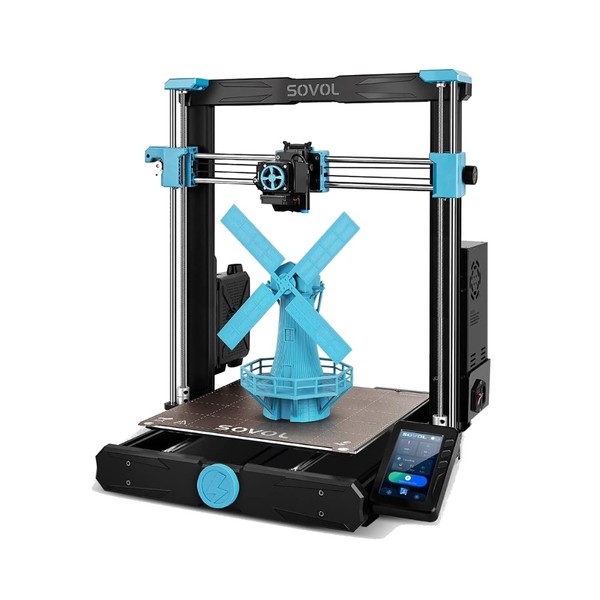

About the Sovol SV06 Plus

The Sovol SV06 Plus is an open-source FDM 3D printer with a large print size, high printing speed, and an all-metal dual gear direct drive extruder. It supports various materials and offers high-temperature printing capabilities.

Do you own this 3D printer? Help us improve this page. Click here to learn more

Benefits of the Sovol SV06 Plus

Modern mainboard features - Many 3D printer features relate to the version of the mainboard and firmware, including features like resuming prints after a power failure and support for silent stepper motor drivers for quieter printing. Newer boards also include safety features like thermal runaway protection which shuts the printer down if it detects issues with overheating.

Has touch screen - having a touch screen isn't a deal-maker or breaker, but it is a convenient feature that makes it easier to navigate the interface when you are printing files and configuring 3D printing settings.

PEI build surface has good balance of adhesion and part removal - PEI beds are one of the more premium build surface options, and for good reason. They offer great first layer adhesion with no spraysor other treatments, and can be flexed to quickly remove parts. You'll need to clean the bed with a solvent like acetone or IPA every so often to maintain the bed's adhesion.

Linear rail motion system - Linear rails provide added stability to the moving parts of the printer, allowing higher printing speeds without sacrificing quality. Keep in mind that the most important factor to consider when optimizing for print speed is the flow rate of filament, which depends on the hot end and nozzle size moreso than the motion system.

All-metal hot end - An all-metal hot end allows for printing at high temperatures up to 300C, while standard hot ends are capped at 260C before the PTFE material begins to degrade. All-metal hot ends are also less susceptible to jamming, and do not degrade as fast.

Generous Build volume - A larger than average build volume means that you will be able to print larger parts without the need to split them into pieces and attach them together, which is especially useful with functional parts. If you have the room for the larger footprint, we definitely recommend going with a larger 3D printer, since you can always print small parts on a larger printer.

Affordable - This printer does not include a lot of frills, but offers a good experience for a low price point. While this low price means you won't be getting the most premium features, you can still get a lot out of these machines if you are willing to put up with some missing quality of life features.

Direct drive extruder - Direct drive extruders are mounted right above the hot end, and push the filament directly into it, as opposed to a side mounted bowden extruder setup. We prefer direct drive extruders to bowden since they are less prone to jamming and typically require less maintenance. they also are much easier to use with flexible materials

Disadvantages to consider

Budget components - In order to keep costs down, this 3D printer uses more plastic pieces and other lower quality components

Bare-bones appearance - This printer is not built to be attractive, which is apparent by the standard aluminum extrusions used throughout the design, and the exposed power supply unit. While this is a purely cosmetic issue, it makes the printer less attractive than some of it's more expensive cousins.

Where to buy the Sovol SV06 Plus

Click here to view the Sovol SV06 Plus on Amazon.

Brand Summary: Sovol

Sovol is a 3D printer brand known for producing innovative printers with more features than their competitors at a lower price. Their printers are beginner-friendly and have good build quality, but their entry-level printer, the SV01, lacks a bed leveling probe. While Sovol's community is still establishing itself, the company's support is well-regarded, and they have over 80,000 users. Sovol has experimented with complex dual extrusion features, which led to clogging problems and quality issues in some of their previous models. However, their current printers, such as the SV06 Plus, offer impressive features like 25-point auto bed leveling and a 500W bed heater. Sovol's varied printers appeal to different users, from new users to advanced users.

Learn more about Sovol.

Pros

  • Modern mainboard features
  • Has touch screen
  • PEI build surface has good balance of adhesion and part removal
  • Linear rail motion system
  • All-metal hot end
  • Generous Build volume
  • Affordable
  • Direct drive extruder

Cons

  • Budget components
  • Bare-bones appearance

More on the Sovol SV06 Plus

Printer Comparisons

You can compare the Sovol SV06 Plus to other 3D printers using our Compare tool.

Details & Specifications

General

Manufacturer
Sovol
Year Released
2023
Technology
FDM
Scale Model:
Build Volume
300 x 300 x 340 mm
Bed Material
PEI Spring Steel
Nominal Maximum Speed
150

Extruder & Hot-end

Extruder Type
Direct Drive
Extruder Construction
All-Metal Dual Gear
Hot-end Construction
All-Metal
Cooling Fan
-

Physical Characteristics

Physical size
538 x 488 x 707 mm
Kinematics
Cartesian
Chassis
Open enclosure

Usability

Auto Leveling
Inductive
Assembly Time
Fully Assembled
User Interface
Full Color Touch Screen
Other Features
Built-in belt tensioner

Electronics

Base Voltage
24 V
Quiet Motor Drivers
-
